#Filament Truss

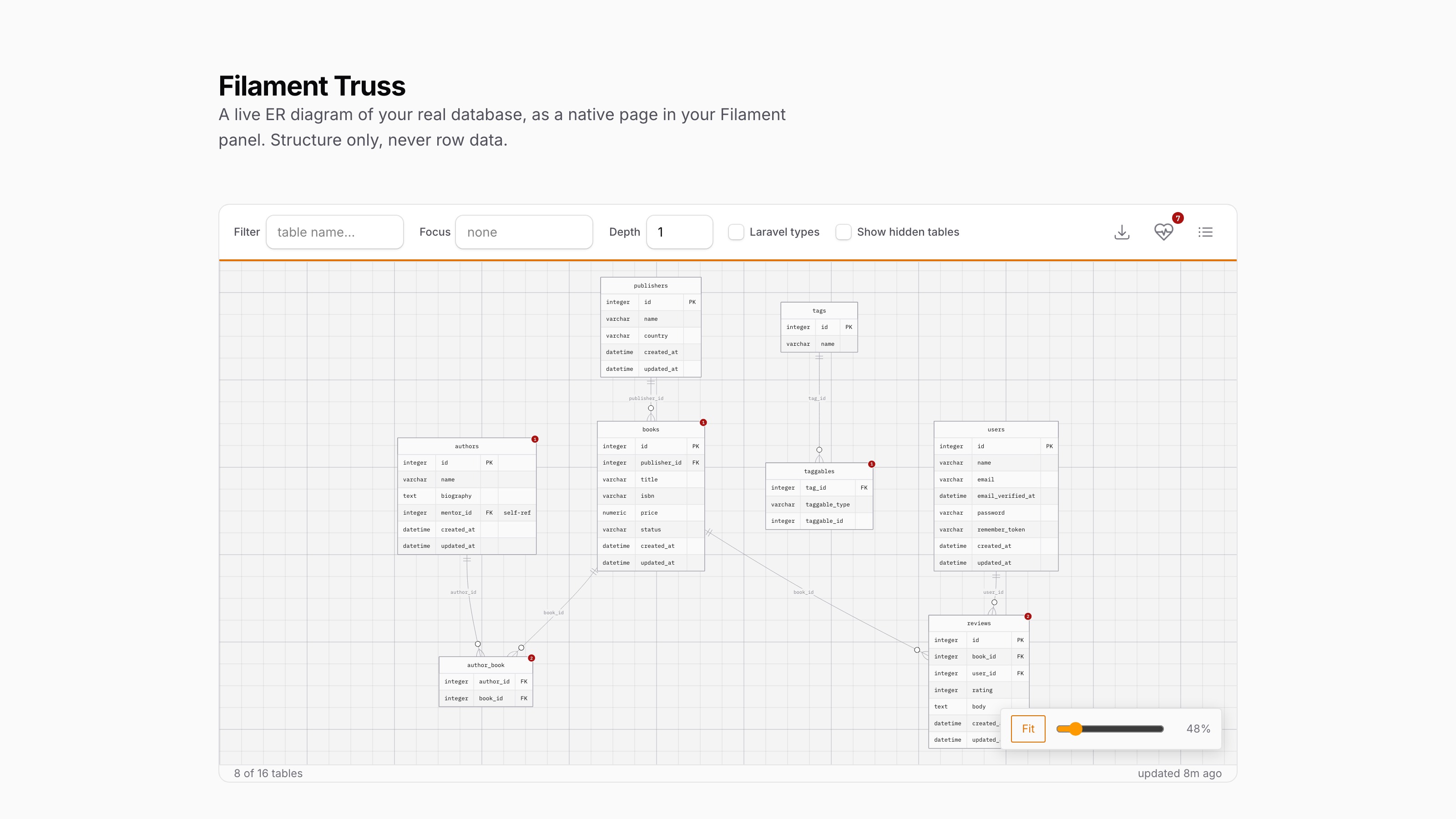

A live ER diagram (ERD) of your real database, as a native page inside a Filament panel. Built on Laravel Truss, which reads the database you actually have rather than the migrations you think you ran.

Structure only. No row data is ever read, sent, or rendered. That is the core promise of Truss and this package inherits it without exception.

#What it is, and what it is not

It is a Filament page, built from the panel's own components and styled by the panel's own theme, so it looks like part of the admin rather than a visitor in it.

It is not the Truss dashboard in an iframe. That was considered and rejected: a frame around another page inherits none of the panel's chrome, breaks its dark mode, and reads as a bolted-on tab. If that is all you want, Truss already ships a dashboard and you can link to it.

It is read-only. It exposes nothing Truss does not already expose, and it gains no write path just because it lives inside an admin panel.

#Requirements

PHP ^8.2
Laravel ^12.0 | ^13.0
Filament ^5.0
albertoarena/laravel-truss ^1.13.1, which is where the schema, the diff and the structural findings come from. The floor is a patch above the line's first release on purpose: v1.13.1 is what stops the toolbar's Filter field collapsing when the diagram is embedded in something narrower than the window, which is every panel

Filament 4 is deliberately not supported. See docs/DECISIONS.md.

#Installation

composer require albertoarena/filament-truss

Laravel Truss comes with it as a regular dependency, so there is nothing else to install and no asset to publish.

use AlbertoArena\FilamentTruss\FilamentTrussPlugin;
use Filament\Panel;
use Filament\PanelProvider;

class AdminPanelProvider extends PanelProvider
{
    public function panel(Panel $panel): Panel
    {
        return $panel
            // ...
            ->plugin(FilamentTrussPlugin::make());
    }
}

The page appears in the panel navigation as Database schema, at /database-schema under your panel's path. There is nothing to configure for the diagram itself: it follows Truss's config and the panel's theme.

#Who can see the page

A Filament page does not pass through Truss's own middleware, so this package asks the same questions itself. The rule is that the page is visible exactly when the Truss dashboard would be visible to the same user, in the same order:

truss.enabled, which defaults to on in local and off everywhere else. Set TRUSS_ENABLED=true to run it anywhere else.
In local, that is all: Truss leaves the dashboard open there and so does this page.
Everywhere else, the viewTruss gate. Truss ships a default that admits the emails in TRUSS_ALLOWED_EMAILS, and an application can define its own gate instead:
```
Gate::define('viewTruss', fn ($user) => $user->isAdmin());
```

Being allowed into the panel is not the same as being allowed to read the database structure, and this package never treats it as such. Both switches are Truss's, so a viewer who can see the Truss dashboard can see this page, and a viewer who cannot, cannot.

#Open the diagram on a table

A resource can offer a button that opens the diagram with its own table already focused. Add the trait to the resource and put the action where you want it:

use AlbertoArena\FilamentTruss\Actions\Concerns\HasViewInSchemaAction;
use Filament\Resources\Resource;

class BookResource extends Resource
{
    use HasViewInSchemaAction;

    // ...
}

// In a page's header, a table's row actions, or anywhere else that takes an action
BookResource::viewInSchemaAction();

Put the trait on a base resource class and every resource extending it is opted in. Or skip the trait and name the table yourself:

use AlbertoArena\FilamentTruss\Actions\ViewInSchemaAction;

ViewInSchemaAction::make()->forModel(Book::class);
ViewInSchemaAction::make()->forTable('books');

The button removes itself rather than disabling itself when the panel has no such page, when the viewer fails the check above, or when the table is one Truss excludes from the diagram. In each case there is nothing the viewer could do about it, and a greyed control invites them to try.

#Hidden tables

Truss keeps framework plumbing out of the diagram through its own truss.excluded_tables, so a panel on 16 tables may draw 8 of them. The footer says so (8 of 16 tables), and where truss.reveal_excluded allows it, a Show hidden tables toggle draws them muted. That is on by default in local and off elsewhere, matching truss.enabled and the viewTruss gate.

Both switches live in Truss's config and this package adds none of its own. So the toggle being absent in production is a setting rather than a bug, and excluding a table to keep it off a shared panel keeps working: there is no query parameter and no plugin option that puts it back.

#Configuration

The diagram reads Truss's config, which is the single place to change what is drawn. Publish it if you have not already:

php artisan vendor:publish --tag=truss-config

The one option this package adds is the link to the project in the page header, which is on by default and off in one call:

$panel->plugin(FilamentTrussPlugin::make()->documentationLink(false));

#Documentation

The user guide lives at trussphp.com, in a section of its own alongside the Laravel Truss documentation. This README stays the source of truth for installing and configuring the package, because it is what Packagist and the plugin directory render, and the site carries the narrative, the screenshots and the guide.

In this repository:

docs/DESIGN.md: architecture, and how the page gets its data
docs/DECISIONS.md: why it is built this way
CONTRIBUTING.md: how to work on it
CHANGELOG.md: what changed

#Testing

composer test   # Pest
composer lint   # Laravel Pint
npm test        # Vitest, over the client-side files

Rendering and interaction in a real panel are covered by hand, against docs/MANUAL-TESTS.md, because neither suite has a panel to render into.

#Changelog

See CHANGELOG.md for recent changes.

#Contributing

See CONTRIBUTING.md.

#Security

Report a vulnerability privately to hello@albertoarena.it rather than in a public issue.

#Related packages

albertoarena/laravel-truss is the engine: the schema reader, the diagram, the diff and the structural doctor, with a dashboard and a CLI of its own.
albertoarena/filament-event-sourcing brings spatie/laravel-event-sourcing into a Filament panel.

#📬 Stay updated

Practical notes on Laravel, database tooling and AI-assisted development, roughly once a month. No spam.

Subscribe →

#Credits

Alberto Arena
Built on Laravel Truss

#License

MIT. See LICENSE.

The licence covers the code. The project name and brand are separate: see TRADEMARK.md, which defers to the Laravel Truss policy.

This plugin is not official, endorsed, or affiliated with the Filament project. "Filament" is a trademark of its owners.
