#Filament Adjacency List

A Filament package to manage adjacency lists (aka trees).

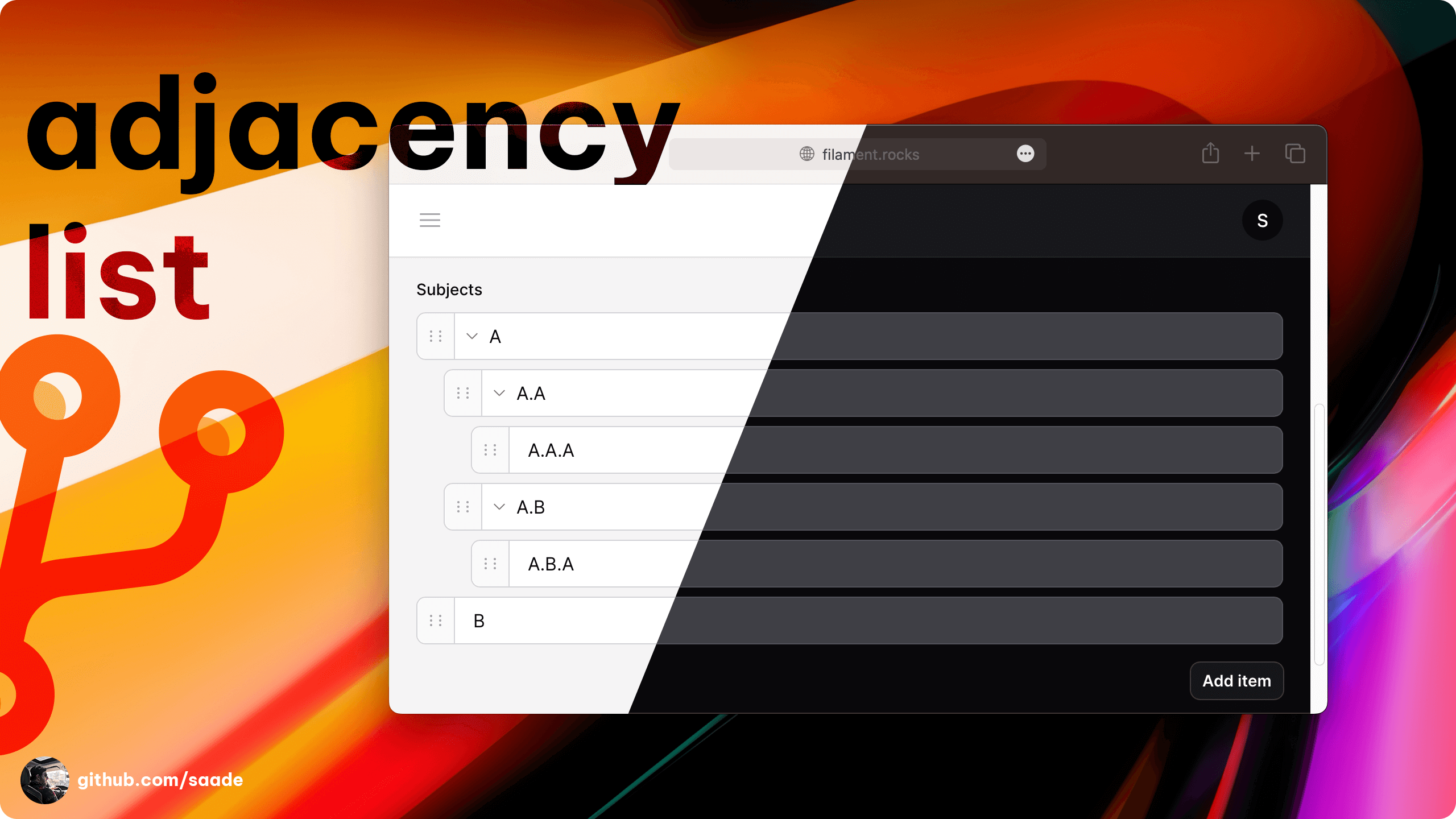

Banner

#Installation

You can install the package via composer:

composer require saade/filament-adjacency-list

[!IMPORTANT] In an effort to align with Filament's theming methodology you will need to use a custom theme to use this plugin.

If you have not set up a custom theme and are using a Panel follow the instructions in the Filament Docs first. The following applies to both the Panels Package and the standalone Forms package.

Add the plugin's views to your tailwind.config.js file.

content: [
    ...
    '<path-to-vendor>/saade/filament-adjacency-list/resources/**/*.blade.php',
]

Rebuild your custom theme.

npm run build

#Usage

use Saade\FilamentAdjacencyList\Forms\Components\AdjacencyList;

AdjacencyList::make('subjects')
    ->form([
        Forms\Components\TextInput::make('label')
            ->required(),
    ])

#Configuration

#Customizing the `label` key used to display the item's label

AdjacencyList::make('subjects')
    ->labelKey('name')          // defaults to 'label'

#Customizing the `children` key used to gather the item's children.

Note: This is only used when not using relationships.

AdjacencyList::make('subjects')
    ->childrenKey('children')   // defaults to 'children'

#Customizing the `MaxDepth` of the tree.

AdjacencyList::make('subjects')
    ->maxDepth(2)               // defaults to -1 (unlimited depth)

#Triggering an action or opening a URL when clicking on an item.

AdjacencyList::make('subjects')
    ->itemAction('edit') // or view, delete, moveUp, indent etc ...
    ->itemUrl(
        fn (array $item) => YourResource::getUrl('view', ['record' => $item['id']]) // for example
    )

#Creating items without a modal.

AdjacencyList::make('subjects')
    ->modal(false)      // defaults to true

#Disabling creation, edition, deletion, reordering, moving, and indenting.

AdjacencyList::make('subjects')
    ->addable(false)
    ->editable(false)
    ->deletable(false)
    ->reorderable(false)
    ->moveable(false)
    ->indentable(false)

#Customizing actions

use Filament\Forms\Actions\Action;

AdjacencyList::make('subjects')
    ->addAction(fn (Action $action): Action => $action->icon('heroicon-o-plus')->color('primary'))
    ->addChildAction(fn (Action $action): Action => $action->button())
    ->editAction(fn (Action $action): Action => $action->icon('heroicon-o-pencil'))
    ->deleteAction(fn (Action $action): Action => $action->requiresConfirmation())
    ->reorderAction(fn (Action $action): Action => $action->icon('heroicon-o-arrow-path-rounded-square'))

#Relationships

In this example, we'll be creating a Ticketing system, where tickets can be assigned to a department, and departments have subjects.

#Building the relationship

// App/Models/Department.php

class Department extends Model
{
    public function subjects(): HasMany
    {
        return $this->hasMany(Subject::class)->whereNull('parent_id')->with('children')->orderBy('sort');
    }
}

// App/Models/Subject.php

class Subject extends Model
{
    protected $fillable ['parent_id', 'name', 'sort']; // or whatever your columns are

    public function children(): HasMany
    {
        return $this->hasMany(Subject::class, 'parent_id')->with('children')->orderBy('sort');
    }
}

Now you've created a nested relationship between departments and subjects.

#Using the relationship

// App/Filament/Resources/DepartmentResource.php

AdjacencyList::make('subjects')
    ->relationship('subjects')          // Define the relationship
    ->labelKey('name')                  // Customize the label key to your model's column
    ->childrenKey('children')           // Customize the children key to the relationship's method name
    ->form([                            // Define the form
        Forms\Components\TextInput::make('name')
            ->label(__('Name'))
            ->required(),
    ]);

That's it! Now you're able to manage your adjacency lists using relationships.

#Working with Staudenmeir's Laravel Adjacency List

This package also supports Staudenmeir's Laravel Adjacency List package.

First, install the package:

composer require staudenmeir/laravel-adjacency-list:"^1.0"

Use the HasRecursiveRelationships trait in your model, and override the default path separator.

// App/Models/Department.php

class Department extends Model
{
    use \Staudenmeir\LaravelAdjacencyList\Eloquent\HasRecursiveRelationships;

    public function getPathSeparator()
    {
        return '.children.';
    }
}

If you're already using the HasRecursiveRelationships trait for other parts of your application, it's probably not a good idea to change your model's path separator, since it can break other parts of your application. Instead, you can add as many path separators as you want:

class Department extends Model
{
    use \Staudenmeir\LaravelAdjacencyList\Eloquent\HasRecursiveRelationships;

    public function getCustomPaths()
    {
        return [
            [
                'name' => 'tree_path',
                'column' => 'id',
                'separator' => '.children.',
            ],
        ];
    }
}

Use the relationship method to define the relationship:

AdjacencyList::make('subdepartments')
    ->relationship('descendants')   // or 'descendantsAndSelf', 'children' ...
    ->customPath('tree_path')       // if you're using custom paths

That's it! Now you're able to manage your adjacency lists using relationships.

#Customizing the query

AdjacencyList::make('subdepartments')
    ->relationship('descendants', fn (Builder $query): Builder => $query->where('enabled', 1))

#Ordering

If your application needs to order the items in the list, you can use the orderColumn method:

AdjacencyList::make('subdepartments')
    ->orderColumn('sort')   // or any other column

#Widget

The AdjacencyListWidget can be used to render a tree for any model with a recursive child relationship (including many-to-many graph relationships, using Staudenmeir's HasGraphRelationships trait).

The simplest use case is ...

class DepartmentTreeWidget extends AdjacencyListWidget
{
    protected static string $relationshipName = 'descendantsAndSelf';

    // If you're using a widget on an Edit or View page, the plugin will automatically set the $record for you.
    // However, you're free to override this method to customize the record.
    public function getModel(): Model | string | null
    {
        return Department::query()->where(['is_root' => true])->first();
    }

    // You can configure the widget using the same methods as the form component.
    protected function adjacencyList(AdjacencyList $adjacencyList): AdjacencyList
    {
        return $adjacencyList
            ->label('Foo')
            ->editable()
            ->labelKey('nombre')
            ->childrenKey('hijos');
    }
}

#Changelog

Please see CHANGELOG for more information on what has changed recently.

#Contributing

Please see CONTRIBUTING for details.

#Security Vulnerabilities

Please review our security policy on how to report security vulnerabilities.

#Credits

Saade
Ryan Chandler's Navigation Plugin for his work on the tree UI and complex tree actions.
Hugh for his help on supporting trees/ graphs relationships.
All Contributors

#License

The MIT License (MIT). Please see License File for more information.
