Filament Tree View

Tree view for Filament resources - drop-in replacement for Table with drag-and-drop hierarchical data management

#Filament Tree View

Latest Version on Packagist Total Downloads

A powerful drag-and-drop tree view for Filament resources. Display and manage hierarchical data with the same elegant developer experience you expect from Filament.

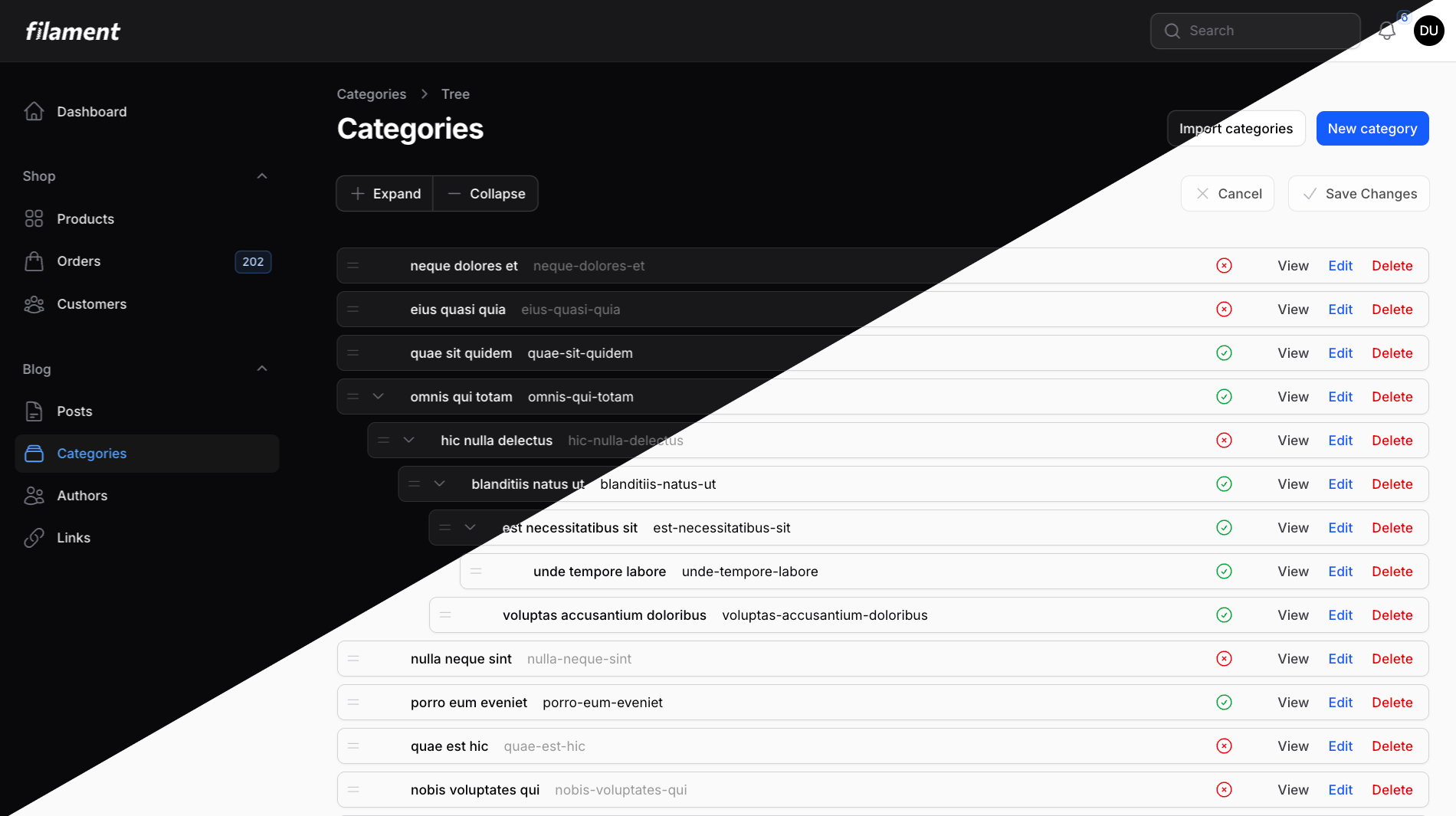

Filament Tree View Demo

#Why This Package?

We created Filament Tree View because we couldn't find a hierarchical data solution that truly embraced Filament's philosophy and architecture. Most tree packages feel like external additions rather than native Filament components.

Our Goal: Make hierarchical data management feel as natural as using Filament's Table component.

#Built on Proven Technology

Rather than reinventing the wheel, we leverage battle-tested libraries:

  • Laravel Adjacency List - Mature, proven package for recursive relationships with thousands of production deployments
  • Pragmatic Drag & Drop - Atlassian's accessible, performant drag-and-drop library used in Jira, Trello, and Confluence
  • Filament's Core Components - Built with the same patterns, conventions, and architecture as native Filament resources

This foundation gives you reliability, performance, and accessibility out of the box.

#Features

  • 🌳 Drag-and-Drop Reordering - Intuitive tree manipulation with visual feedback
  • 📦 Drop-in Replacement - Familiar API if you've used Filament Tables
  • 🎯 Depth Control - Limit tree nesting to prevent overly complex hierarchies
  • 💾 Save Modes - Choose between auto-save or batch save with manual confirmation
  • 🎨 Custom Fields - Display any data in your tree nodes with TextField and IconField
  • 🔧 Actions Support - Full support for Filament actions (edit, delete, custom actions)
  • 🌗 Dark Mode - Seamless integration with Filament's theming system
  • ♿ Accessible - Keyboard navigation and screen reader support built-in
  • 🔒 Safe Operations - Prevents circular references and invalid moves

#Requirements

  • PHP 8.2 or higher
  • Laravel 11 or 12
  • Filament 4.x or 5.x

#Installation

Install the package via Composer:

composer require openplain/filament-tree-view

Publish the package assets:

php artisan filament:assets

That's it! The plugin registers its CSS and JavaScript assets with Filament automatically. Everything is now configured and ready to use.

#Quick Start

#1. Prepare Your Database

Create a migration with the required tree structure columns:

Schema::create('categories', function (Blueprint $table) {
    $table->id();
    $table->string('name');
    $table->boolean('is_active')->default(true);

    // Required for tree structure
    $table->foreignId('parent_id')->nullable()->constrained('categories');
    $table->integer('order')->default(0);

    $table->timestamps();
});

#2. Add Trait to Your Model

Add the HasTreeStructure trait to enable tree functionality:

<?php

namespace App\Models;

use Illuminate\Database\Eloquent\Model;
use Openplain\FilamentTreeView\Concerns\HasTreeStructure;

class Category extends Model
{
    use HasTreeStructure;

    protected $fillable = ['name', 'is_active', 'parent_id', 'order'];
}

The trait provides:

  • Recursive parent/child relationships
  • Automatic cascade delete for descendants
  • Tree query helpers (roots, leaves, depth calculations)

#3. Add Tree Configuration to Your Resource

Add a tree() method to your resource alongside form() and table():

<?php

namespace App\Filament\Resources;

use App\Filament\Resources\CategoryResource\Pages;
use App\Models\Category;
use Filament\Resources\Resource;
use Filament\Schemas\Schema;
use Openplain\FilamentTreeView\Fields\IconField;
use Openplain\FilamentTreeView\Fields\TextField;
use Openplain\FilamentTreeView\Tree;

class CategoryResource extends Resource
{
    protected static ?string $model = Category::class;

    public static function form(Schema $schema): Schema
    {
        // Your form configuration
    }

    public static function tree(Tree $tree): Tree
    {
        return $tree
            ->fields([
                TextField::make('name'),
                IconField::make('is_active'),
            ]);
    }

    public static function getPages(): array
    {
        return [
            'index' => Pages\TreeCategories::route('/'),
            'create' => Pages\CreateCategory::route('/create'),
            'edit' => Pages\EditCategory::route('/{record}/edit'),
        ];
    }
}

#4. Create a Tree Page

Create a simple page that extends TreePage:

<?php

namespace App\Filament\Resources\CategoryResource\Pages;

use App\Filament\Resources\CategoryResource;
use Openplain\FilamentTreeView\Resources\Pages\TreePage;

class TreeCategories extends TreePage
{
    protected static string $resource = CategoryResource::class;
}

That's it! You now have a fully functional drag-and-drop tree view with manual save mode.

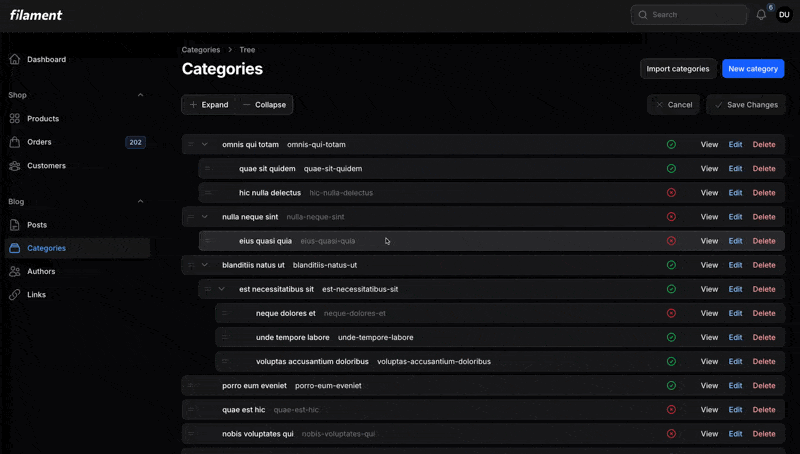

Quick Start Result

#Relation Pages

If you're using Filament's relation pages (extending ManageRelatedRecords), you can use TreeRelationPage instead of TreePage. This is ideal when you want to manage a hierarchical relationship separately from editing or viewing the owner record.

#When to Use TreeRelationPage

  • You're using resource sub-navigation and want to switch between View/Edit pages and the relation page
  • You want to keep relationship management separate from the owner record
  • The tree configuration should come from the related resource, not the parent resource

#Example: Managing Category Children

<?php

namespace App\Filament\Resources\CategoryResource\Pages;

use App\Filament\Resources\CategoryResource;
use Openplain\FilamentTreeView\Resources\Pages\TreeRelationPage;

class ManageCategoryChildren extends TreeRelationPage
{
    protected static string $resource = CategoryResource::class;
    protected static string $relationship = 'children';
    protected static ?string $relatedResource = CategoryResource::class;
}

Register the page in your resource:

public static function getPages(): array
{
    return [
        'index' => Pages\ListCategories::route('/'),
        'create' => Pages\CreateCategory::route('/create'),
        'view' => Pages\ViewCategory::route('/{record}'),
        'edit' => Pages\EditCategory::route('/{record}/edit'),
        'children' => Pages\ManageCategoryChildren::route('/{record}/children'),
    ];
}

#Advanced Configuration

Need more control? The tree view offers powerful customization options. All configuration is optional - only add what you need.

#Understanding Defaults

The tree uses sensible defaults for most settings:

  • Fields: Required - You must configure which fields to display
  • Actions: Optional - No actions shown unless you add them
  • Collapse: Enabled by default - individual toggles + header Expand All/Collapse All buttons
  • Save Mode: Manual save with Save/Cancel buttons (safer)
  • Depth: 10 levels by default

Quick Links:

#Tree Behavior

Control how your tree displays and behaves:

public static function tree(Tree $tree): Tree
{
    return $tree
        ->maxDepth(5)           // Limit nesting to 5 levels
        ->collapsed()           // Start with nodes collapsed
        ->autoSave();          // Save immediately on reorder
}

Available Options:

Method Default Description
maxDepth(int|null) 10 levels Restrict maximum tree depth (pass null for unlimited)
collapsible(bool) Enabled Individual toggles + header Expand All/Collapse All buttons
collapsed() Expanded Start with nodes collapsed instead of expanded
reorderable(bool) Enabled Drag-and-drop reordering; disable to render a read-only tree
autoSave() Disabled Save changes immediately on drag-and-drop

Common Patterns:

// Default - fully featured tree (collapsible, expanded, manual save)
return $tree->fields([...]);

// Simple/small tree - disable collapse
return $tree
    ->fields([...])
    ->collapsible(false);

// Large tree - start collapsed for better performance
return $tree
    ->fields([...])
    ->collapsed();

// Auto-save for simple admin trees
return $tree
    ->fields([...])
    ->autoSave();

// Read-only tree - disable drag-and-drop reordering
// (also hides drag handles and the manual save/cancel buttons)
return $tree
    ->fields([...])
    ->reorderable(false);

#Custom Fields

Fields are required - you must configure which fields to display in your tree nodes.

Use the Field API to define what data appears in each tree node:

use Openplain\FilamentTreeView\Fields\TextField;
use Openplain\FilamentTreeView\Fields\IconField;
use Filament\Support\Enums\Alignment;
use Filament\Support\Enums\FontWeight;

public static function tree(Tree $tree): Tree
{
    return $tree
        ->fields([
            TextField::make('name')
                ->weight(FontWeight::Medium)
                ->dimWhenInactive(),

            TextField::make('description')
                ->color('gray')
                ->limit(50)
                ->dimWhenInactive(),

            IconField::make('is_active')
                ->alignEnd(),
        ]);
}

#TextField Options

TextField::make('name')
    // Typography
    ->size('sm' | 'base' | 'lg')
    ->weight(FontWeight::Thin | FontWeight::Medium | FontWeight::Bold)

    // Colors (Filament color names)
    ->color('primary' | 'gray' | 'success' | 'warning' | 'danger')

    // Alignment
    ->alignStart()  // default
    ->alignCenter()
    ->alignEnd()

    // Content formatting
    ->limit(50)  // Truncate with ellipsis
    ->formatStateUsing(fn (string $state): string => strtoupper($state))

    // Conditional dimming
    ->dimWhenInactive()  // Defaults to 'is_active' field
    ->dimWhenInactive('custom_status')  // Or specify a custom field
    ->dimWhen('field_name', value: false);  // Or check any field for any value

#IconField Options

IconField::make('is_active')
    // Icons (Heroicon enum)
    ->trueIcon(Heroicon::OutlinedCheckCircle)
    ->falseIcon(Heroicon::OutlinedXCircle)

    // Colors
    ->trueColor('success')
    ->falseColor('danger')

    // Alignment
    ->alignEnd();  // Typically right-aligned

#Actions

Add actions to tree nodes just like Filament Tables:

use Filament\Actions\EditAction;
use Filament\Actions\DeleteAction;
use Filament\Actions\Action;

public static function tree(Tree $tree): Tree
{
    return $tree
        ->recordActions([
            // Navigate to edit page
            EditAction::make()
                ->url(fn (Category $record): string =>
                    static::getUrl('edit', ['record' => $record])
                ),

            // Edit in modal
            Action::make('editModal')
                ->label('Quick Edit')
                ->icon('heroicon-o-pencil-square')
                ->fillForm(fn (Category $record): array => [
                    'name' => $record->name,
                    'description' => $record->description,
                ])
                ->form([
                    TextInput::make('name')->required(),
                    Textarea::make('description'),
                ])
                ->action(function (Category $record, array $data) {
                    $record->update($data);

                    Notification::make()
                        ->title('Category updated')
                        ->success()
                        ->send();
                }),

            // Delete with descendant warning
            DeleteAction::make()
                ->modalDescription(function (Category $record): string {
                    $count = $record->descendants()->count();

                    if ($count === 0) {
                        return 'Are you sure you want to delete this category?';
                    }

                    return "This category has {$count} descendants that will also be deleted.";
                }),
        ]);
}

#Model Configuration

The HasTreeStructure trait uses sensible defaults, but you can customize column names for legacy databases:

class Category extends Model
{
    use HasTreeStructure;

    /**
     * Parent ID column name (default: 'parent_id')
     *
     * Override this for legacy databases with custom column names.
     * Common examples: 'parent_category_id', 'category_parent_id', 'parent'
     */
    public function getParentKeyName(): string
    {
        return 'parent_category_id'; // Your legacy column name
    }

    /**
     * Primary key column name (default: 'id')
     */
    public function getLocalKeyName(): string
    {
        return $this->getKeyName(); // Usually 'id'
    }

    /**
     * Virtual depth attribute (default: 'depth')
     * Calculated during queries, not stored
     */
    public function getDepthName(): string
    {
        return 'depth';
    }

    /**
     * Virtual path attribute (default: 'path')
     * Example: [1, 5, 12] = root(1) > parent(5) > current(12)
     * Calculated during queries, not stored
     */
    public function getPathName(): string
    {
        return 'path';
    }

    /**
     * Children relationship name (default: 'children')
     */
    public function getChildrenKeyName(): string
    {
        return 'children';
    }

    /**
     * Order column name (default: 'order')
     * Override this for legacy databases with custom column names.
     * Common examples: 'sort_order', 'position', 'sort', 'sequence'
     */
    public function getOrderKeyName(): string
    {
        return 'sort_order'; // Your legacy column name
    }

    /**
     * Root parent value (default: null)
     * Override this for existing databases that use -1, 0, or other values
     * to represent root nodes (nodes without a parent)
     */
    public function getParentKeyDefaultValue(): mixed
    {
        return null; // or -1, 0, etc.
    }
}

#Working with Existing Databases

#Custom Parent Field Name

If your legacy database uses a different column name for the parent relationship (instead of parent_id), override the getParentKeyName() method:

class Category extends Model
{
    use HasTreeStructure;

    /**
     * Your database uses 'parent_category_id' instead of 'parent_id'
     */
    public function getParentKeyName(): string
    {
        return 'parent_category_id';
    }
}

Common legacy field names:

  • parent_category_id - Category-specific parent field
  • category_parent_id - Alternative naming convention
  • parent - Simplified field name
  • parent_node_id - Generic tree structure naming

No migration needed! The tree view will automatically use your custom field name for all queries and updates.

#Custom Order Field Name

If your legacy database uses a different column name for the sort order (instead of order), override the getOrderKeyName() method:

class Category extends Model
{
    use HasTreeStructure;

    /**
     * Your database uses 'sort_order' instead of 'order'
     */
    public function getOrderKeyName(): string
    {
        return 'sort_order';
    }
}

Common legacy field names:

  • sort_order - Common in legacy systems
  • position - Alternative naming convention
  • sort - Simplified field name
  • sequence - Alternative naming
  • display_order - Descriptive field name

No migration needed! The tree view will automatically use your custom field name for all ordering operations.

#Custom Root Parent Value

If your existing database uses -1, 0, or another value to represent root nodes instead of NULL, override the getParentKeyDefaultValue() method:

class Category extends Model
{
    use HasTreeStructure;

    /**
     * Existing database uses -1 for root nodes
     *
     * ⚠️ WARNING: Only use non-null values like -1 or 0 with INTEGER parent_id columns.
     * For UUID or other string-based columns, you MUST use null for root nodes.
     */
    public function getParentKeyDefaultValue(): mixed
    {
        return -1; // Only works with integer columns
    }
}

#Combining Multiple Customizations

You can override multiple methods for complete legacy database support:

class Category extends Model
{
    use HasTreeStructure;

    public function getParentKeyName(): string
    {
        return 'parent_category_id'; // Custom parent field name
    }

    public function getOrderKeyName(): string
    {
        return 'sort_order'; // Custom order field name
    }

    public function getParentKeyDefaultValue(): mixed
    {
        return -1; // Custom root value
    }
}

No database migrations needed! The package handles all queries and updates automatically.

#UUID Primary Keys

The tree view fully supports UUID primary keys and foreign keys. No special configuration is required:

Schema::create('categories', function (Blueprint $table) {
    $table->uuid('id')->primary();
    $table->uuid('parent_id')->nullable(); // Works automatically
    $table->integer('order')->default(0);
    $table->timestamps();
});

Important: When using UUID columns for parent_id, root nodes must use null (this is the default behavior). Do not override getParentKeyDefaultValue() to return -1 or 0 - these values are invalid for UUID columns and will cause database errors.

class Category extends Model
{
    use HasTreeStructure;

    // ✅ Correct - uses null for root nodes (default)
    // No need to override getParentKeyDefaultValue()

    // ❌ Wrong - will fail with UUID columns
    // public function getParentKeyDefaultValue(): mixed
    // {
    //     return -1; // Invalid for UUID!
    // }
}

The trait automatically handles UUID columns - just ensure parent_id is nullable and leave the default null value for root nodes.

#Customizing Empty State

public static function tree(Tree $tree): Tree
{
    return $tree
        ->emptyStateHeading('No categories yet')
        ->emptyStateDescription('Get started by creating your first category.')
        ->emptyStateIcon('heroicon-o-rectangle-stack')
        ->emptyStateActions([
            CreateAction::make()
                ->label('Create first category'),
        ]);
}

#Save Behavior

By default, the tree uses manual save mode - changes require clicking "Save Changes":

return $tree; // Manual save mode - safe default

Enable auto-save to save immediately on every drag-and-drop:

return $tree->autoSave(); // Saves instantly

Why manual save is the default:

  • ✅ Review all changes before committing
  • ✅ Cancel to discard unwanted changes
  • ✅ Safer for production environments
  • ✅ Better for complex hierarchies

When to use auto-save:

  • Simple admin-only trees
  • Single-user scenarios
  • Immediate feedback preferred

#Query Customization

Modify the base query for your tree:

public static function tree(Tree $tree): Tree
{
    return $tree
        ->modifyQueryUsing(fn (Builder $query) => $query
            ->where('status', 'active')
            ->orderBy('name')
        );
}

#Working with Translatable Content

The tree view includes built-in support for Spatie Laravel Translatable, allowing you to display and manage multilingual hierarchical data.

#Setup

  1. Install Spatie Translatable:
composer require spatie/laravel-translatable
  1. Prepare Your Model:
use Illuminate\Database\Eloquent\Model;
use Openplain\FilamentTreeView\Concerns\HasTreeStructure;
use Spatie\Translatable\HasTranslations;

class Category extends Model
{
    use HasTreeStructure;
    use HasTranslations;

    public $translatable = ['name', 'description'];

    protected $fillable = ['name', 'description', 'parent_id', 'order'];
}
  1. Add Translatable Trait to Resource:
use Openplain\FilamentTreeView\Resources\Concerns\Translatable;

class CategoryResource extends Resource
{
    use Translatable;

    protected static ?string $model = Category::class;

    public static function getTranslatableLocales(): array
    {
        return ['en', 'es', 'fr']; // Configure available locales
    }

    // ... rest of your resource
}
  1. Add Translatable Trait to TreePage:
use Openplain\FilamentTreeView\Resources\Pages\TreePage;
use Openplain\FilamentTreeView\Resources\Pages\TreePage\Concerns\Translatable;

class TreeCategories extends TreePage
{
    use Translatable;

    protected static string $resource = CategoryResource::class;
}

That's it! The tree will now automatically:

  • ✅ Display a locale switcher in the header
  • ✅ Show translated content for the active locale
  • ✅ Auto-detect translatable fields
  • ✅ Keep forms/modals in the admin locale (as expected)

#How It Works

  • TextField automatically detects translations: If your model uses HasTranslations and a field is translatable, it will automatically display the correct translation
  • Locale switcher: Added to header actions automatically when using the Translatable trait
  • Tree display only: Translations only affect the tree view - forms and modals stay in the admin locale
  • No configuration needed: TextFields detect and display translations automatically

#Customizing Locales

You can customize available locales at the resource level:

class CategoryResource extends Resource
{
    use Translatable;

    public static function getTranslatableLocales(): array
    {
        // Use config
        return config('app.locales');

        // Or hardcode
        return ['en', 'es', 'fr', 'de'];

        // Or use a dynamic source
        return Language::where('active', true)->pluck('code')->toArray();
    }
}

#Example

// Your translatable category model
$category->setTranslation('name', 'en', 'Electronics');
$category->setTranslation('name', 'es', 'Electrónica');
$category->setTranslation('name', 'fr', 'Électronique');
$category->save();

// In the tree view:
// - Switch to English → Shows "Electronics"
// - Switch to Spanish → Shows "Electrónica"
// - Switch to French → Shows "Électronique"

Notes:

  • Requires spatie/laravel-translatable ^6.0
  • Only tree display shows translations (forms stay in admin locale)
  • Gracefully degrades if package not installed
  • Works with all TextField configurations (colors, weights, etc.)

#Common Patterns

Real-world examples to help you get started quickly:

#Building a Navigation Menu

class MenuItem extends Model
{
    use HasTreeStructure;

    protected $fillable = ['label', 'url', 'icon', 'parent_id', 'order', 'is_active'];
}

public static function tree(Tree $tree): Tree
{
    return $tree
        ->maxDepth(3) // Limit menu depth
        ->fields([
            TextField::make('label')->weight(FontWeight::Medium),
            TextField::make('url')->color('gray'),
            TextField::make('icon')->color('gray'),
            IconField::make('is_active')->alignEnd(),
        ])
        ->recordActions([
            EditAction::make(),
            DeleteAction::make(),
        ]);
}

#Product Categories with Status

public static function tree(Tree $tree): Tree
{
    return $tree
        ->fields([
            TextField::make('name')
                ->weight(FontWeight::Medium)
                ->dimWhenInactive(),

            TextField::make('products_count')
                ->formatStateUsing(fn (int $state): string => "{$state} products")
                ->color('gray'),

            TextField::make('status')
                ->formatStateUsing(fn (string $state): string => ucfirst($state))
                ->color(fn (string $state): string => match ($state) {
                    'published' => 'success',
                    'draft' => 'warning',
                    default => 'gray',
                }),

            IconField::make('is_active')->alignEnd(),
        ]);
}

#Department Hierarchy

class Department extends Model
{
    use HasTreeStructure;

    public function employees()
    {
        return $this->hasMany(Employee::class);
    }
}

public static function tree(Tree $tree): Tree
{
    return $tree
        ->maxDepth(5)
        ->fields([
            TextField::make('name')->weight(FontWeight::Bold),
            TextField::make('manager_name')->color('gray'),
            TextField::make('employees_count')
                ->formatStateUsing(fn (?int $state): string =>
                    $state ? "{$state} employees" : 'No employees'
                )
                ->color('gray'),
        ]);
}

#Troubleshooting

#Styling Issues or Missing Styles

If the tree view appears unstyled or layouts look broken:

  1. Republish assets:

    php artisan filament:assets

  2. Clear browser cache - Hard refresh your browser (Cmd+Shift+R on Mac, Ctrl+Shift+R on Windows/Linux)

  3. Clear application caches:

    php artisan filament:cache-components
php artisan view:clear

#JavaScript Not Loading

If drag-and-drop doesn't work after installation:

# Publish assets
php artisan filament:assets

# Clear caches
php artisan filament:cache-components
php artisan view:clear

#Drag Restrictions

If you can't drag items to certain positions:

  1. Depth limit reached - Check your maxDepth() setting
  2. Circular reference - Can't move a parent into its own descendant
  3. Custom canDrop logic - Review any custom drop validation

#Performance with Large Trees

For trees with hundreds of nodes:

  • Consider pagination or filtering at the root level
  • Use ->collapsed() to start with nodes collapsed
  • Eager load relationships in modifyQueryUsing()
->modifyQueryUsing(fn (Builder $query) =>
    $query->with(['children', 'someRelation'])
)

#ComponentNotFoundException After Creating TreePage

If you encounter Unable to find component: [app.filament.resources.blog.categories.pages.tree-categories] when clicking actions:

Cause: Laravel and Livewire cache component registries. New TreePage classes aren't immediately discoverable.

Fix:

composer dump-autoload
php artisan optimize:clear

This clears Composer's autoloader, Livewire's component cache, and all Laravel caches. The error occurs after creating new TreePage classes or when updating the plugin in development environments.

#Testing

Run the test suite:

composer test

Run Pint for code style:

composer pint

#Contributing

We welcome contributions! Please see CONTRIBUTING.md for details.

#Security

If you discover a security vulnerability, please email security@openplain.com. All security vulnerabilities will be promptly addressed.

#Credits

Built with these excellent open-source libraries:

  • Laravel Adjacency List by Jonas Staudenmeir - Battle-tested recursive tree queries with thousands of production deployments
  • Pragmatic Drag & Drop by Atlassian - Accessible, performant drag-and-drop used in Jira, Trello, and Confluence

#License

The MIT License (MIT). Please see License File for more information.

Built with ❤️ by Openplain

Nova versão disponível.
